Growers in colder climates often utilize various approaches to extend the growing season or to give their crops a boost, whether it’s coldframes, hoop houses or greenhouses.
Greenhouses are usually glazed structures, but are typically expensive to construct and heat throughout the winter. A much more affordable and effective alternative to glass greenhouses is the walipini (an Aymara Indian word for a “place of warmth”), also known as an underground or pit greenhouse. First developed over 20 years ago for the cold mountainous regions of South America, this method allows growers to maintain a productive garden year-round, even in the coldest of climates.
Here’s a video tour of a walipini that even incorporates a bit of interior space for goats:
How a Walipini works and how to build one
It’s a pretty intriguing set-up that combines the principles of passive solar heating with earth-sheltered building. But how to make one?From American sustainable agriculture non-profit Benson Institute comes this enlightening manual on how a walipini works, and how to build it:
The Walipini utilizes nature’s resources to provide a warm, stable, well-lit environment for year-round vegetable production. Locating the growing area 6’- 8’ underground and capturing and storing daytime solar radiation are the most important principles in building a successful Walipini.

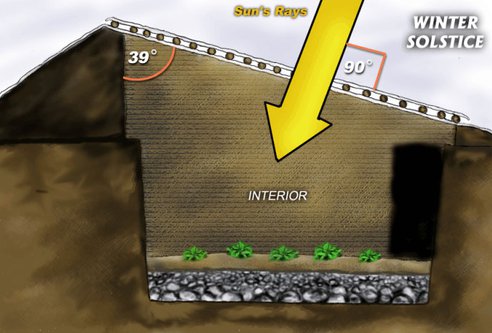

The Walipini, in simplest terms, is a rectangular hole in the ground 6 ‛ to 8’ deep covered by plastic sheeting. The longest area of the rectangle faces the winter sun — to the north in the Southern Hemisphere and to the south in the Northern Hemisphere. A thick wall of rammed earth at the back of the building and a much lower wall at the front provide the needed angle for the plastic sheet roof. This roof seals the hole, provides an insulating airspace between the two layers of plastic (a sheet on the top and another on the bottom of the roof/poles) and allows the sun’s rays to penetrate creating a warm, stable environment for plant growth.
This earth-sheltered greenhouse taps into the thermal mass of the earth, so that much less energy is needed to heat up the walipini’s interior than an aboveground greenhouse. Of course, there are precautions to take in waterproofing, drainage and ventilating the walipini, while aligning it properly to the sun — which the manual covers in detail.
Best of all, according to the Benson Institute, their 20-foot by 74-foot walipni field model out in La Paz cost around $250 to $300 only, thanks to the use of free labour provided by owners and neighbours, and the use of cheaper materials like plastic ultraviolet (UV) protective sheeting and PVC piping.
Cheap but effective, the underground greenhouse is a great way for growers to produce food year-round in colder climates.
Author : Kimberley Mok
Source : treehugger.com
How well would this work for allowing citrus trees to grow in climates that are too cool? For instance with a top that could be removed when the weather is warm and replaced when temps drop too low, maybe with a small heat source for the occasional really cold night?
This is a varient on the pit greenhouses used in colonial Massachusetts and Connecticut to grow pineapples for export. It was rediscovered in the sixties my Mike Oehler of underground house fame. He wrote a book on it with great design advice and poor construction device. You need to read hus book before you build one of these. The one pictured would be greatly improved with a cold well. Also the woodstove should be replaced with a rocket stove mass heater. Cheaper to buy and use and 100 times easier. If Poopies on the blades you wont have time to. Abysit a greenhouse stove six to ten times a day. Its only once or twice on a rocket mass stove and there is less wood to prep.
To answer the a ove question, i have pineapples, citrus, bananas and a avacado growing in my pit greenhouse. Adding olives this year. We are above 3000 feet in the catskill mountains. Hardest winter in fifty years. Only burned my rocket stove once daily and kept the greenhouse above 75 F all winter.
